HeightMap class, to manipulate a set of RGBA heightmap for heightmap texturing. More...

#include <heightmap.hpp>

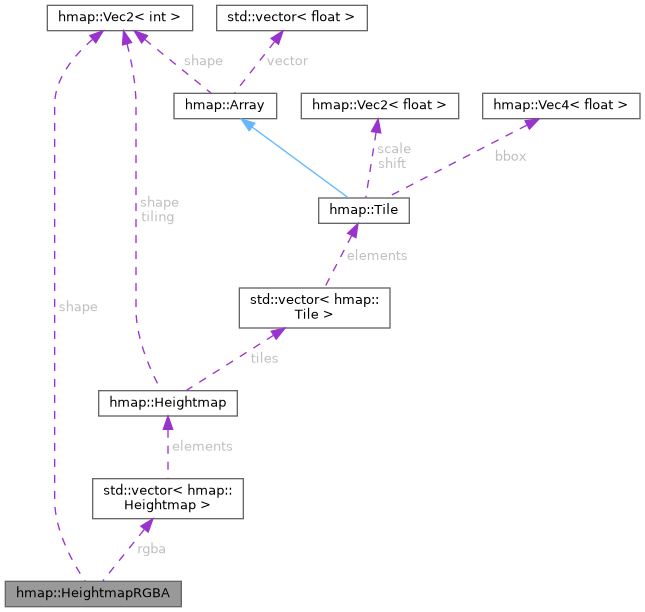

Collaboration diagram for hmap::HeightmapRGBA:

[legend]

Public Member Functions
	HeightmapRGBA (Heightmap r, Heightmap g, Heightmap b, Heightmap a)
	Constructor.

	HeightmapRGBA (Vec2< int > shape, Vec2< int > tiling, float overlap, Array array_r, Array array_g, Array array_b, Array array_a)

	HeightmapRGBA (Vec2< int > shape, Vec2< int > tiling, float overlap)

	HeightmapRGBA ()
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void	set_alpha (Heightmap new_alpha)
	Set the alpha channel.

void	set_alpha (float new_alpha)

void	set_sto (Vec2< int > new_shape, Vec2< int > new_tiling, float new_overlap)
	Set the shape / tiling / overlap in one pass.

void	to_png (const std::string &fname, int depth=CV_8U)
	Export the RGB heightmap to a 8bit png file.

void	colorize (Heightmap &color_level, float vmin, float vmax, int cmap, Heightmap p_alpha=nullptr, bool reverse=false, Heightmap p_noise=nullptr)
	Fill RGB heightmap components based on a colormap and an input reference heightmap.

void	colorize (Heightmap &color_level, float vmin, float vmax, std::vector< std::vector< float > > colormap_colors, Heightmap p_alpha=nullptr, bool reverse=false, Heightmap p_noise=nullptr)
	Fill RGBA heightmap components based on a colormap and input reference heightmaps for the color level and the transparency.

void	colorize (Heightmap &color_level, float vmin, float vmax, std::vector< float > positions, std::vector< std::vector< float > > colormap_colors, Heightmap p_alpha=nullptr, bool reverse=false, Heightmap p_noise=nullptr)

Heightmap	luminance ()
	Computes the luminance of an RGBA height map.

void	normalize ()
	Normalize RGBA heightmaps amplitude.

std::vector< uint8_t >	to_img_8bit (Vec2< int > shape_img={0, 0}, bool flip_y=true) const
	Convert the RGB heightmap to a 8bit RGB image.

Public Attributes
std::vector< Heightmap >	rgba
	RGBA component heightmap storage.

Vec2< int >	shape = {0, 0}
	Shape.

Friends
HeightmapRGBA	mix_heightmap_rgba (HeightmapRGBA &rgba1, HeightmapRGBA &rgba2, bool use_sqrt_avg)
	Mix two RGBA heightmap using alpha compositing ("over").

HeightmapRGBA	mix_heightmap_rgba (std::vector< HeightmapRGBA * > rgba_plist, bool use_sqrt_avg)
	Mix two RGBA heightmap using alpha compositing ("over").

Detailed Description

HeightMap class, to manipulate a set of RGBA heightmap for heightmap texturing.

Example

Result

Constructor & Destructor Documentation

◆ HeightmapRGBA() [1/4]

hmap::HeightmapRGBA::HeightmapRGBA	(	Heightmap	r,
		Heightmap	g,
		Heightmap	b,
		Heightmap	a
	)

Constructor.

Parameters

r	Heightmap for R (red) component.
g	Heightmap for G (green) component.
b	Heightmap for B (blue) component.
a	Heightmap for A (alpha) component.

◆ HeightmapRGBA() [2/4]

hmap::HeightmapRGBA::HeightmapRGBA	(	Vec2< int >	shape,
		Vec2< int >	tiling,
		float	overlap,
		Array	array_r,
		Array	array_g,
		Array	array_b,
		Array	array_a
	)

◆ HeightmapRGBA() [3/4]

hmap::HeightmapRGBA::HeightmapRGBA	(	Vec2< int >	shape,
		Vec2< int >	tiling,
		float	overlap
	)

◆ HeightmapRGBA() [4/4]

hmap::HeightmapRGBA::HeightmapRGBA ( )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Member Function Documentation

◆ set_alpha() [1/2]

void hmap::HeightmapRGBA::set_alpha ( Heightmap new_alpha )

Set the alpha channel.

Parameters

new_alpha Alpha value(s).

◆ set_alpha() [2/2]

void hmap::HeightmapRGBA::set_alpha ( float new_alpha )

◆ set_sto()

void hmap::HeightmapRGBA::set_sto	(	Vec2< int >	new_shape,
		Vec2< int >	new_tiling,
		float	new_overlap
	)

Set the shape / tiling / overlap in one pass.

Parameters

new_shape	New shape.
new_tiling	New tiling.
new_overlap	New overlap.

◆ to_png()

void hmap::HeightmapRGBA::to_png	(	const std::string &	fname,
		int	depth = `CV_8U`
	)

Export the RGB heightmap to a 8bit png file.

Parameters

fname File name.

◆ colorize() [1/3]

void hmap::HeightmapRGBA::colorize	(	Heightmap &	color_level,
		float	vmin,
		float	vmax,
		int	cmap,
		Heightmap *	p_alpha = `nullptr`,
		bool	reverse = `false`,
		Heightmap *	p_noise = `nullptr`
	)

Fill RGB heightmap components based on a colormap and an input reference heightmap.

Parameters

color_level	Input heightmap for color level.
vmin	Lower bound for scaling to array [0, 1].
vmax	Upper bound for scaling to array [0, 1]
cmap	Colormap (see `cmap`).
p_alpha	Reference to input heightmap for alpha channel, expected in [0, 1].
reverse	Reverse colormap.

◆ colorize() [2/3]

void hmap::HeightmapRGBA::colorize	(	Heightmap &	color_level,
		float	vmin,
		float	vmax,
		std::vector< std::vector< float > >	colormap_colors,
		Heightmap *	p_alpha = `nullptr`,
		bool	reverse = `false`,
		Heightmap *	p_noise = `nullptr`
	)

Fill RGBA heightmap components based on a colormap and input reference heightmaps for the color level and the transparency.

Parameters

color_level	Input heightmap for color level.
vmin	Lower bound for scaling to array [0, 1].
vmax	Upper bound for scaling to array [0, 1]
colormap_colors	Colormap RGB colors as a vector of RGB colors.
p_alpha	Reference to input heightmap for alpha channel, expected in [0, 1].
reverse	Reverse colormap.

◆ colorize() [3/3]

void hmap::HeightmapRGBA::colorize	(	Heightmap &	color_level,
		float	vmin,
		float	vmax,
		std::vector< float >	positions,
		std::vector< std::vector< float > >	colormap_colors,
		Heightmap *	p_alpha = `nullptr`,
		bool	reverse = `false`,
		Heightmap *	p_noise = `nullptr`
	)

◆ luminance()

Heightmap hmap::HeightmapRGBA::luminance ( )

Computes the luminance of an RGBA height map.

This method creates a grayscale HeightMap based on the luminance values calculated from the red, green, and blue channels of the RGBA height map. The luminance is computed using the standard formula: \( L = 0.299 \times R + 0.587 \times G + 0.114 \times B \).

Returns: A HeightMap representing the grayscale luminance of the current RGBA height map.

See also: https://stackoverflow.com/questions/596216 for details on the luminance calculation.

◆ normalize()

void hmap::HeightmapRGBA::normalize ( )

Normalize RGBA heightmaps amplitude.

◆ to_img_8bit()

std::vector< uint8_t > hmap::HeightmapRGBA::to_img_8bit	(	Vec2< int >	shape_img = `{0, 0}`,
		bool	flip_y = `true`
	)		const

Convert the RGB heightmap to a 8bit RGB image.

Parameters

shape_img Resulting image shape.

Returns: Image data.

Friends And Related Symbol Documentation

◆ mix_heightmap_rgba [1/2]

HeightmapRGBA mix_heightmap_rgba	(	HeightmapRGBA &	rgba1,
		HeightmapRGBA &	rgba2,
		bool	use_sqrt_avg = `true`
	)

friend

Mix two RGBA heightmap using alpha compositing ("over").

Parameters

rgba1	1st RGBA heightmap.
rgba2	2st RGBA heightmap.
use_sqrt_avg	Whether to use or not square averaging.

Returns: RGBA heightmap.

◆ mix_heightmap_rgba [2/2]

HeightmapRGBA mix_heightmap_rgba	(	std::vector< HeightmapRGBA * >	rgba_plist,
		bool	use_sqrt_avg = `true`
	)

friend

Mix two RGBA heightmap using alpha compositing ("over").

Parameters

rgba_plist	Heightmap reference list.
use_sqrt_avg	Whether to use or not square averaging.

Returns: RGBA heightmap.

Member Data Documentation

◆ rgba

std::vector<Heightmap> hmap::HeightmapRGBA::rgba

RGBA component heightmap storage.

◆ shape

Vec2<int> hmap::HeightmapRGBA::shape = {0, 0}

Shape.

The documentation for this struct was generated from the following files:

HighMap/include/highmap/heightmap.hpp
HighMap/src/heightmap/heightmap_rgba.cpp
