hmap::HeightmapRGB Struct Reference

HeightMap class, to manipulate a set of RGB heightmap for heightmap texturing. More...

#include <heightmap.hpp>

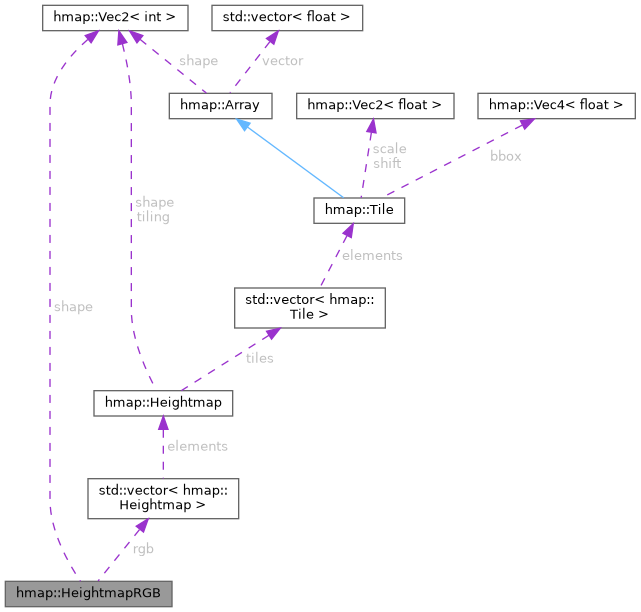

Collaboration diagram for hmap::HeightmapRGB:

Public Member Functions
	HeightmapRGB (Heightmap r, Heightmap g, Heightmap b)
	Constructor.
	HeightmapRGB ()
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
void	set_sto (Vec2< int > new_shape, Vec2< int > new_tiling, float new_overlap)
	Set the shape / tiling / overlap in one pass.
void	colorize (Heightmap &h, float vmin, float vmax, int cmap, bool reverse=false)
	Fill RGB heightmap components based on a colormap and an input reference heightmap.
void	colorize (Heightmap &h, float vmin, float vmax, std::vector< std::vector< float > > colormap_colors, bool reverse=false)
	Fill RGB heightmap components based on a colormap and an input reference heightmap.
void	normalize ()
	Normalize RGB heightmaps amplitude.
std::vector< uint8_t >	to_img_8bit (Vec2< int > shape_img={0, 0})
	Convert the RGB heightmap to a 8bit RGB image.
void	to_png (const std::string &fname, int depth=CV_8U)
	Export the RGB heightmap to a 16bit png file.

Public Attributes
std::vector< Heightmap >	rgb
	RGB component heightmap storage.
Vec2< int >	shape = {0, 0}
	Shape.

Friends
HeightmapRGB	mix_heightmap_rgb (HeightmapRGB &rgb1, HeightmapRGB &rgb2, Heightmap &t)
	Mix two RGB heightmap using linear interpolation.
HeightmapRGB	mix_heightmap_rgb (HeightmapRGB &rgb1, HeightmapRGB &rgb2, float t)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
HeightmapRGB	mix_heightmap_rgb_sqrt (HeightmapRGB &rgb1, HeightmapRGB &rgb2, Heightmap &t)
	Mix two RGB heightmap using weighted quadratic averaging.
HeightmapRGB	mix_heightmap_rgb_sqrt (HeightmapRGB &rgb1, HeightmapRGB &rgb2, float t)

Detailed Description

HeightMap class, to manipulate a set of RGB heightmap for heightmap texturing.

Constructor & Destructor Documentation

HeightmapRGB() [1/2]

hmap::HeightmapRGB::HeightmapRGB	(	Heightmap	r,
		Heightmap	g,
		Heightmap	b
	)

Constructor.

Parameters

r	Heightmap for R (red) component.
g	Heightmap for G (green) component.
b	Heightmap for B (blue) component.

HeightmapRGB() [2/2]

hmap::HeightmapRGB::HeightmapRGB

(

)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Member Function Documentation

set_sto()

void hmap::HeightmapRGB::set_sto	(	Vec2< int >	new_shape,
		Vec2< int >	new_tiling,
		float	new_overlap
	)

Set the shape / tiling / overlap in one pass.

Parameters

new_shape	New shape.
new_tiling	New tiling.
new_overlap	New overlap.

colorize() [1/2]

void hmap::HeightmapRGB::colorize	(	Heightmap &	h,
		float	vmin,
		float	vmax,
		int	cmap,
		bool	reverse = false
	)

Fill RGB heightmap components based on a colormap and an input reference heightmap.

Parameters

h	Input heightmap.
vmin	Lower bound for scaling to array [0, 1].
vmax	Upper bound for scaling to array [0, 1]
cmap	Colormap (see cmap).
reverse	Reverse colormap.

colorize() [2/2]

void hmap::HeightmapRGB::colorize	(	Heightmap &	h,
		float	vmin,
		float	vmax,
		std::vector< std::vector< float > >	colormap_colors,
		bool	reverse = false
	)

Fill RGB heightmap components based on a colormap and an input reference heightmap.

Parameters

h	Input heightmap.
vmin	Lower bound for scaling to array [0, 1].
vmax	Upper bound for scaling to array [0, 1]
colormap_colors	Colormap RGB colors as a vector of RGB colors.
reverse	Reverse colormap.

normalize()

void hmap::HeightmapRGB::normalize

(

)

Normalize RGB heightmaps amplitude.

to_img_8bit()

std::vector< uint8_t > hmap::HeightmapRGB::to_img_8bit

(

Vec2< int >

shape_img = {0, 0}

)

Convert the RGB heightmap to a 8bit RGB image.

Parameters

shape_img

Resulting image shape.

Returns

Image data.

to_png()

void hmap::HeightmapRGB::to_png	(	const std::string &	fname,
		int	depth = CV_8U
	)

Export the RGB heightmap to a 16bit png file.

Parameters

fname

File name.

Friends And Related Symbol Documentation

mix_heightmap_rgb [1/2]

HeightmapRGB mix_heightmap_rgb ( HeightmapRGB &  rgb1, HeightmapRGB &  rgb2, Heightmap &  t  )

friend

Mix two RGB heightmap using linear interpolation.

Parameters

rgb1	1st RGB heightmap.
rgb2	2st RGB heightmap.
t	Mixing parameter, in [0, 1].

Returns

RGB heightmap.

mix_heightmap_rgb [2/2]

HeightmapRGB mix_heightmap_rgb ( HeightmapRGB &  rgb1, HeightmapRGB &  rgb2, float  t  )

friend

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

mix_heightmap_rgb_sqrt [1/2]

HeightmapRGB mix_heightmap_rgb_sqrt ( HeightmapRGB &  rgb1, HeightmapRGB &  rgb2, Heightmap &  t  )

friend

Mix two RGB heightmap using weighted quadratic averaging.

Parameters

rgb1	1st RGB heightmap.
rgb2	2st RGB heightmap.
t	Mixing parameter, in [0, 1].

Returns

RGB heightmap.

mix_heightmap_rgb_sqrt [2/2]

HeightmapRGB mix_heightmap_rgb_sqrt ( HeightmapRGB &  rgb1, HeightmapRGB &  rgb2, float  t  )

friend

Member Data Documentation

rgb

std::vector<Heightmap> hmap::HeightmapRGB::rgb

RGB component heightmap storage.

Example

Result

shape

Vec2<int> hmap::HeightmapRGB::shape = {0, 0}

Shape.

---

The documentation for this struct was generated from the following files:

• HighMap/include/highmap/heightmap.hpp
• HighMap/src/heightmap/heightmap_rgb.cpp
