hmap::WaveDuneFunction Class Reference

Wave dune (x, y) function class. More...

#include <functions.hpp>

Inheritance diagram for hmap::WaveDuneFunction:

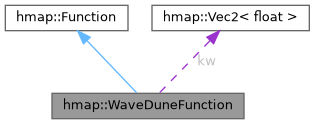

Collaboration diagram for hmap::WaveDuneFunction:

Public Member Functions
	WaveDuneFunction (Vec2< float > kw, float angle, float xtop, float xbottom, float phase_shift)
	Construct a new Wave Dune Function object.
void	set_angle (float new_angle)
	Set the angle.
Public Member Functions inherited from hmap::Function
	Function ()
	Default constructor. Initializes the delegate function to a default that returns 0.
virtual	~Function ()=default
	Virtual destructor to ensure proper cleanup in derived classes.
	Function (HMAP_FCT_XY_TYPE delegate)
	Constructor to initialize with a specific delegate function.
HMAP_FCT_XY_TYPE	get_delegate () const
	Get the current delegate function.
float	get_value (float x, float y, float ctrl_param) const
	Call the delegate function with given arguments.
void	set_delegate (HMAP_FCT_XY_TYPE new_delegate)
	Set a new delegate function.

Protected Attributes
Vec2< float >	kw
	Frequency scaling vector.
float	angle
	Overall rotation angle (in degrees).
float	xtop
	Relative location of the top of the dune profile (in [0, 1]).
float	xbottom
	1]).
float	phase_shift
	Phase shift (in radians).

Detailed Description

Wave dune (x, y) function class.

This class models a wave dune function with specific noise wavenumbers, rotation angle, slant ratio, and phase shift. It extends the base Function class.

Constructor & Destructor Documentation

WaveDuneFunction()

hmap::WaveDuneFunction::WaveDuneFunction	(	Vec2< float >	kw,
		float	angle,
		float	xtop,
		float	xbottom,
		float	phase_shift
	)

Construct a new Wave Dune Function object.

Parameters

kw	Noise wavenumbers {kx, ky} for each direction, with respect to a unit domain.
angle	Overall rotation angle (in degrees).
xtop	Relative location of the top of the dune profile (in [0, 1]).
xbottom	Relative location of the foot of the dune profile (in [0, 1]).
phase_shift	Phase shift (in radians).

Member Function Documentation

set_angle()

void hmap::WaveDuneFunction::set_angle ( float  new_angle )

inline

Set the angle.

Parameters

new_angle

New angle.

Member Data Documentation

kw

Vec2<float> hmap::WaveDuneFunction::kw

protected

Frequency scaling vector.

angle

float hmap::WaveDuneFunction::angle

protected

Overall rotation angle (in degrees).

xtop

float hmap::WaveDuneFunction::xtop

protected

Relative location of the top of the dune profile (in [0, 1]).

xbottom

float hmap::WaveDuneFunction::xbottom

protected

1]).

Relative location of the foot of the dune profile (in [0,

phase_shift

float hmap::WaveDuneFunction::phase_shift

protected

Phase shift (in radians).

---

The documentation for this class was generated from the following files:

• HighMap/include/highmap/functions.hpp
• HighMap/src/primitives/functions/functions.cpp
