hmap::Tile Class Reference

Tile class, to manipulate a restricted region of an heightmap (with contextual informations). More...

#include <heightmap.hpp>

Inheritance diagram for hmap::Tile:

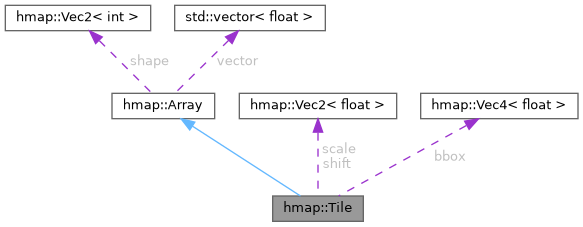

Collaboration diagram for hmap::Tile:

Public Member Functions
	Tile (Vec2< int > shape, Vec2< float > shift, Vec2< float > scale, Vec4< float > bbox)
	Construct a new Tile object.
	Tile ()
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
void	operator= (const Array &array)
	Assignment overloading (array).
void	from_array_interp (Array &array)
	Fill tile values by interpolating (bilinear) values from another array.
void	from_array_interp_bicubic (Array &array)
	Fill tile values by interpolating (bicubic) values from another array.
void	from_array_interp_bilinear (Array &array)
	Fill tile values by interpolating (bilinear) values from another array.
void	from_array_interp_nearest (Array &array)
	Fill tile values by interpolating (nearest) values from another array.
void	infos () const
	Print some informations about the object.
Public Member Functions inherited from hmap::Array
	Array ()
	Constructs a new Array object.
	Array (Vec2< int > shape)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
	Array (Vec2< int > shape, float value)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
	Array (const std::string &filename, bool flip_j=false)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Array &	operator= (const float value)
	Overloads the assignment operator for scalar assignment.
Array &	operator*= (const float value)
	Overloads the multiplication-assignment operator for scalar multiplication.
Array &	operator*= (const Array &array)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Array &	operator/= (const float value)
	Overloads the division-assignment operator for scalar division.
Array &	operator/= (const Array &array)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Array &	operator+= (const float value)
	Overloads the addition-assignment operator for scalar addition.
Array &	operator+= (const Array &array)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Array &	operator-= (const float value)
	Overloads the subtraction-assignment operator for scalar subtraction.
Array &	operator-= (const Array &array)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Array	operator* (const float value) const
	Overloads the multiplication operator for scalar multiplication.
Array	operator* (const Array &array) const
	Overloads the multiplication operator for element-wise multiplication with another array.
Array	operator/ (const float value) const
	Overloads the division operator for scalar division.
Array	operator/ (const Array &array) const
	Overloads the division operator for element-wise division by another array.
Array	operator+ (const float value) const
	Overloads the addition operator for scalar addition.
Array	operator+ (const Array &array) const
	Overloads the addition operator for element-wise addition with another array.
Array	operator- () const
	Overloads the unary minus operator.
Array	operator- (const float value) const
	Overloads the subtraction operator for scalar subtraction.
Array	operator- (const Array &array) const
	Overloads the subtraction operator for element-wise subtraction with another array.
float &	operator() (int i, int j)
	Overloads the function call operator to access the array value at index (i, j).
const float &	operator() (int i, int j) const
	Overloads the function call operator to access the array value at index (i, j) (const version).
void	argmax (float &vmax, int &i, int &j) const
	Finds the maximum value in the array and its coordinates.
std::vector< float >	col_to_vector (int j)
	Extracts a column 'j' as a std::vector.
int	count_non_zero ()
	Return the number of non-zero elements in the array.
void	depose_amount_bilinear_at (int i, int j, float u, float v, float amount)
	Distribute a value 'amount' around the four cells (i, j), (i + 1, j), (i, j + 1), (i + 1, j + 1) by "reversing" the bilinear interpolation.
void	depose_amount_kernel_bilinear_at (int i, int j, float u, float v, int ir, float amount)
void	depose_amount_kernel_at (int i, int j, const Array &kernel, float amount)
	Distributes a specified amount of value around the cell located at (i, j) using a 1D deposition kernel applied in both horizontal and vertical directions.
void	dump (const std::string &fname="out.png") const
	Debug tool, dump some infos and generate an output file (16bits grayscale)
void	dump_histogram (const std::string &msg="") const
	Debug tool, dump array content as an ASCII histogram to the consol.
Array	extract_slice (Vec4< int > idx) const
	Extracts a subarray defined by the slice indices {i1, i2, j1, j2} from the original array, creating a new array. Note that i2 and j2 are excluded from the slice.
Array	extract_slice (int i1, int i2, int j1, int j2) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
void	from_file (const std::string &fname)
	Import array data from a raw binary file.
void	from_numpy (const std::string &fname)
	Import array data from a numpy binary file.
float	get_gradient_x_at (int i, int j) const
	Calculates the gradient in the 'x' (or 'i') direction at a specified index (i, j) using a 2nd order central difference scheme.
float	get_gradient_y_at (int i, int j) const
	Calculates the gradient in the 'y' (or 'j') direction at a specified index (i, j) using a 2nd order central difference scheme.
float	get_gradient_x_bilinear_at (int i, int j, float u, float v) const
	Calculates the gradient in the 'x' (or 'i') direction at a location (x, y) near the index (i, j) using bilinear interpolation.
float	get_gradient_y_bilinear_at (int i, int j, float u, float v) const
	Calculates the gradient in the 'y' (or 'j') direction at a location (x, y) near the index (i, j) using bilinear interpolation.
Vec3< float >	get_normal_at (int i, int j) const
	Calculates the surface normal vector at the index (i, j).
Vec2< int >	get_shape ()
	Retrieves the shape of the array.
size_t	get_sizeof () const
	Retrieves the number of bytes occupied by the array data.
float	get_value_bicubic_at (int i, int j, float u, float v) const
	Retrieves the array value at the location (x, y) near the index (i, j) using bicubic interpolation.
float	get_value_bilinear_at (int i, int j, float u, float v) const
	Retrieves the array value at the location (x, y) near the index (i, j) using bilinear interpolation.
float	get_value_nearest (float x, float y, Vec4< float > bbox)
	Retrieves the nearest value at the location (x, y) within a bounded domain.
std::vector< float >	get_vector () const
	Retrieves the underlying data vector.
void	infos (std::string msg="") const
	Display various information about the array.
int	linear_index (int i, int j) const
	Return the linear index corresponding to the (i, j) cell in a 2D array.
Vec2< int >	linear_index_reverse (int k) const
	Convert a linear index to its corresponding (i, j) cell coordinates.
float	max () const
	Return the value of the greatest element in the array.
float	mean () const
	Return the mean value of the elements in the array.
float	min () const
	Return the value of the smallest element in the array.
void	normalize ()
	Normalize array values so that the sum of all elements is equal to 1.
Vec2< float >	normalization_coeff (float vmin=0.f, float vmax=1.f) const
	Computes normalization coefficients (a, b) such that a * array + b maps the values to the range [vmin, vmax].
void	print () const
	Print the array values to the standard output (stdout).
float	ptp () const
	Return the peak-to-peak amplitude (i.e., the difference between the maximum and minimum values) of the array values.
Array	remapped () const
	Return an array remapped to [0, 1].
Array	resample_to_shape (Vec2< int > new_shape) const
	Return a resampled array of shape new_shape using bilinear interpolation.
Array	resample_to_shape_bicubic (Vec2< int > new_shape) const
	Return a resampled array of shape new_shape using bicubic interpolation.
Array	resample_to_shape_bilinear (Vec2< int > new_shape) const
Array	resample_to_shape_nearest (Vec2< int > new_shape) const
	Return a resampled array of shape new_shape using nearest neighbor interpolation.
std::vector< float >	row_to_vector (int i)
	Return a row i as a std::vector<float>.
void	set_shape (Vec2< int > new_shape)
	Sets a new shape for the array.
void	set_slice (Vec4< int > idx, float value)
	Set the value of a slice defined by indices {i1, i2, j1, j2} to a new value.
void	set_slice (Vec4< int > idx, const Array &array)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
int	size () const
	Return the total number of elements in the array.
float	std () const
	Return the standard deviation of all array values.
float	sum () const
	Return the sum of all array values.
cv::Mat	to_cv_mat ()
	Converts a 2D Array to an OpenCV cv::Mat.
void	to_exr (const std::string &fname) const
	Export the array as an OpenEXR image file.
void	to_file (const std::string &fname) const
	Export the array to a raw binary file.
void	to_numpy (const std::string &fname) const
	Export the array to a numpy binary file.
void	to_png (const std::string &fname, int cmap, bool hillshading=false, int depth=CV_8U) const
	Export the array as a PNG image file with a specified colormap and hillshading.
void	to_png_grayscale (const std::string &fname, int depth=CV_8U) const
	Export the array as a grayscale PNG image file with specified bit depth.
void	to_tiff (const std::string &fname) const
	Export the array as a TIFF image file.
void	to_raw_16bit (const std::string &fname) const
	Export the array as a 16-bit raw file for Unity terrain import.
std::vector< float >	unique_values ()
	Return the unique elements of the array.

Public Attributes
Vec2< float >	shift
	Tile shift in each direction, assuming the global domain is a unit square. For example, if the tiling is {4, 2}, the shift of tile {3, 2} is {0.75, 0.5}.
Vec2< float >	scale
	Scale of the tile in each direction, assuming the global domain is a unit square. For example, if the tiling is {4, 2} without overlap, the scale is {0.25, 0.5}.
Vec4< float >	bbox
	Tile bounding box {xmin, xmax, ymin, ymax}.
Public Attributes inherited from hmap::Array
Vec2< int >	shape
	The shape of the array {ni, nj}.
std::vector< float >	vector
	The underlying data storage, a vector of size shape.x * shape.y.

Detailed Description

Tile class, to manipulate a restricted region of an heightmap (with contextual informations).

Constructor & Destructor Documentation

Tile() [1/2]

hmap::Tile::Tile	(	Vec2< int >	shape,
		Vec2< float >	shift,
		Vec2< float >	scale,
		Vec4< float >	bbox
	)

Construct a new Tile object.

Parameters

shape	Shape.
shift	Shift.

Tile() [2/2]

hmap::Tile::Tile

(

)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Member Function Documentation

operator=()

void hmap::Tile::operator=

(

const Array &

array

)

Assignment overloading (array).

Parameters

array

from_array_interp()

void hmap::Tile::from_array_interp

(

Array &

array

)

Fill tile values by interpolating (bilinear) values from another array.

Parameters

array

Input array.

from_array_interp_bicubic()

void hmap::Tile::from_array_interp_bicubic

(

Array &

array

)

Fill tile values by interpolating (bicubic) values from another array.

Parameters

array

Input array.

from_array_interp_bilinear()

void hmap::Tile::from_array_interp_bilinear

(

Array &

array

)

Fill tile values by interpolating (bilinear) values from another array.

Parameters

array

Input array.

from_array_interp_nearest()

void hmap::Tile::from_array_interp_nearest

(

Array &

array

)

Fill tile values by interpolating (nearest) values from another array.

Parameters

array

Input array.

infos()

void hmap::Tile::infos

(

)

const

Print some informations about the object.

Member Data Documentation

shift

Vec2<float> hmap::Tile::shift

Tile shift in each direction, assuming the global domain is a unit square. For example, if the tiling is {4, 2}, the shift of tile {3, 2} is {0.75, 0.5}.

scale

Vec2<float> hmap::Tile::scale

Scale of the tile in each direction, assuming the global domain is a unit square. For example, if the tiling is {4, 2} without overlap, the scale is {0.25, 0.5}.

bbox

Vec4<float> hmap::Tile::bbox

Tile bounding box {xmin, xmax, ymin, ymax}.

---

The documentation for this class was generated from the following files:

• HighMap/include/highmap/heightmap.hpp
• HighMap/src/heightmap/tile_base.cpp
