A class for generating fractal noise functions based on an underlying noise function. More...

#include <functions.hpp>

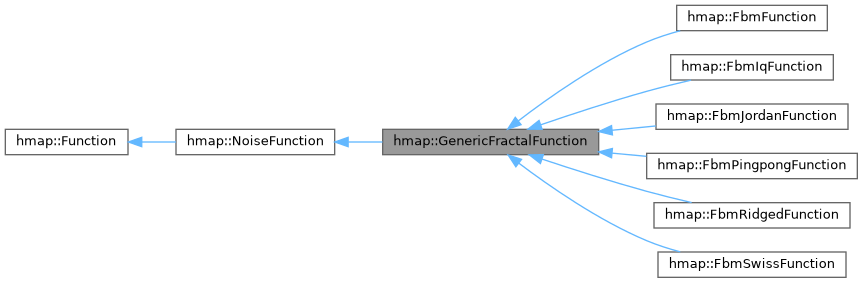

Inheritance diagram for hmap::GenericFractalFunction:

[legend]

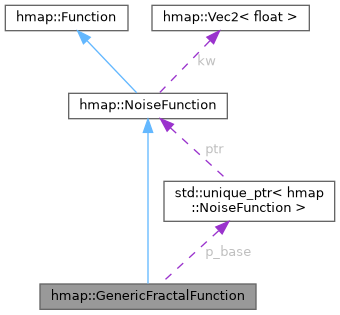

Collaboration diagram for hmap::GenericFractalFunction:

[legend]

Public Member Functions
	GenericFractalFunction (std::unique_ptr< NoiseFunction > p_base, int octaves, float weight, float persistence, float lacunarity)
	Construct a new GenericFractalFunction object.

void	set_kw (Vec2< float > new_kw) override
	Set the frequency scaling vector.

void	set_lacunarity (float new_lacunarity)
	Set the lacunarity of the fractal noise.

void	set_octaves (int new_octaves)
	Set the number of octaves in the fractal noise.

void	set_persistence (float new_persistence)
	Set the persistence of the fractal noise.

void	set_seed (uint new_seed) override
	Set a new random seed for the noise generation.

void	scale_amp0 (float scale)
	Scale the initial amplitude of the fractal noise.

float	get_lacunarity () const
	Get the lacunarity of the fractal noise.

int	get_octaves () const
	Get the number of octaves in the fractal noise.

float	get_persistence () const
	Get the persistence of the fractal noise.

float	get_weight () const
	Get the weight of the fractal noise.

Public Member Functions inherited from hmap::NoiseFunction
	NoiseFunction ()
	Default constructor. Initializes with default frequency scaling and seed.

	NoiseFunction (Vec2< float > kw)
	Constructor to initialize with specific frequency scaling.

	NoiseFunction (Vec2< float > kw, uint seed)
	Constructor to initialize with specific frequency scaling and seed.

Vec2< float >	get_kw () const
	Get the frequency scaling vector.

uint	get_seed () const
	Get the random seed.

Public Member Functions inherited from hmap::Function
	Function ()
	Default constructor. Initializes the delegate function to a default that returns 0.

virtual	~Function ()=default
	Virtual destructor to ensure proper cleanup in derived classes.

	Function (HMAP_FCT_XY_TYPE delegate)
	Constructor to initialize with a specific delegate function.

HMAP_FCT_XY_TYPE	get_delegate () const
	Get the current delegate function.

float	get_value (float x, float y, float ctrl_param) const
	Call the delegate function with given arguments.

void	set_delegate (HMAP_FCT_XY_TYPE new_delegate)
	Set a new delegate function.

Protected Member Functions
void	update_amp0 ()
	Update the initial amplitude (amp0) based on the current octaves and persistence.

Protected Attributes
std::unique_ptr< NoiseFunction >	p_base
	Unique pointer to the base noise function.

int	octaves
	Number of octaves in the fractal noise.

float	weight
	Weight of the base noise function.

float	persistence
	Persistence of the fractal noise.

float	lacunarity
	Lacunarity of the fractal noise.

float	amp0
	Initial amplitude of the fractal noise.

Protected Attributes inherited from hmap::NoiseFunction
Vec2< float >	kw
	Frequency scaling vector.

uint	seed
	Random seed for noise generation.

Detailed Description

A class for generating fractal noise functions based on an underlying noise function.

The GenericFractalFunction class generates fractal noise using an underlying base noise function. It allows customization of the fractal properties such as octaves, weight, persistence, and lacunarity.

Constructor & Destructor Documentation

◆ GenericFractalFunction()

hmap::GenericFractalFunction::GenericFractalFunction	(	std::unique_ptr< NoiseFunction >	p_base,
		int	octaves,
		float	weight,
		float	persistence,
		float	lacunarity
	)

explicit

Construct a new GenericFractalFunction object.

Parameters

p_base	Unique pointer to the base noise function.
octaves	Number of octaves in the fractal noise.
weight	Weight of the base noise function.
persistence	Persistence of the fractal noise.
lacunarity	Lacunarity of the fractal noise.

Member Function Documentation

◆ set_kw()

void hmap::GenericFractalFunction::set_kw ( Vec2< float > new_kw )

inlineoverridevirtual

Set the frequency scaling vector.

Parameters

new_kw The new frequency scaling vector.

Reimplemented from hmap::NoiseFunction.

◆ set_lacunarity()

void hmap::GenericFractalFunction::set_lacunarity ( float new_lacunarity )

inline

Set the lacunarity of the fractal noise.

Parameters

new_lacunarity The new lacunarity value.

◆ set_octaves()

void hmap::GenericFractalFunction::set_octaves ( int new_octaves )

inline

Set the number of octaves in the fractal noise.

Parameters

new_octaves The new number of octaves.

◆ set_persistence()

void hmap::GenericFractalFunction::set_persistence ( float new_persistence )

inline

Set the persistence of the fractal noise.

Parameters

new_persistence The new persistence value.

◆ set_seed()

void hmap::GenericFractalFunction::set_seed ( uint new_seed )

inlineoverridevirtual

Set a new random seed for the noise generation.

Parameters

new_seed The new random seed.

Reimplemented from hmap::NoiseFunction.

◆ scale_amp0()

void hmap::GenericFractalFunction::scale_amp0 ( float scale )

inline

Scale the initial amplitude of the fractal noise.

Parameters

scale The scale factor for the initial amplitude.

◆ get_lacunarity()

float hmap::GenericFractalFunction::get_lacunarity ( ) const

inline

Get the lacunarity of the fractal noise.

Returns: The current lacunarity value.

◆ get_octaves()

int hmap::GenericFractalFunction::get_octaves ( ) const

inline

Get the number of octaves in the fractal noise.

Returns: The current number of octaves.

◆ get_persistence()

float hmap::GenericFractalFunction::get_persistence ( ) const

inline

Get the persistence of the fractal noise.

Returns: The current persistence value.

◆ get_weight()

float hmap::GenericFractalFunction::get_weight ( ) const

inline

Get the weight of the fractal noise.

Returns: The current weight value.

◆ update_amp0()

void hmap::GenericFractalFunction::update_amp0 ( )

protected

Update the initial amplitude (amp0) based on the current octaves and persistence.

Member Data Documentation

◆ p_base

std::unique_ptr<NoiseFunction> hmap::GenericFractalFunction::p_base

protected

Unique pointer to the base noise function.

◆ octaves

int hmap::GenericFractalFunction::octaves

protected

Number of octaves in the fractal noise.

◆ weight

float hmap::GenericFractalFunction::weight

protected

Weight of the base noise function.

◆ persistence

float hmap::GenericFractalFunction::persistence

protected

Persistence of the fractal noise.

◆ lacunarity

float hmap::GenericFractalFunction::lacunarity

protected

Lacunarity of the fractal noise.

◆ amp0

float hmap::GenericFractalFunction::amp0

protected

Initial amplitude of the fractal noise.

The documentation for this class was generated from the following files:

HighMap/include/highmap/functions.hpp
HighMap/src/primitives/functions/fbm_functions.cpp
