Array (x, y) function class. More...

#include <functions.hpp>

Inheritance diagram for hmap::ArrayFunction:

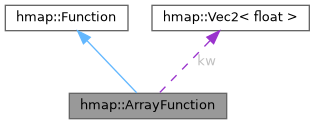

Collaboration diagram for hmap::ArrayFunction:

Public Member Functions
	ArrayFunction (Array array, glm::vec2 kw, bool periodic=true)
	Construct a new ArrayFunction object.

void	set_array (Array new_array)
	Set the array object.

Public Member Functions inherited from hmap::Function
	Function ()
	Default constructor. Initializes the delegate function to a default that returns 0.

virtual	~Function ()=default
	Virtual destructor to ensure proper cleanup in derived classes.

	Function (HMAP_FCT_XY_TYPE delegate)
	Constructor to initialize with a specific delegate function.

HMAP_FCT_XY_TYPE	get_delegate () const
	Get the current delegate function.

float	get_value (float x, float y, float ctrl_param) const
	Call the delegate function with given arguments.

void	set_delegate (HMAP_FCT_XY_TYPE new_delegate)
	Set a new delegate function.

Protected Attributes
glm::vec2	kw
	Frequency scaling vector.

bool	periodic
	Flag indicating whether the domain is periodic or not.

Detailed Description

Array (x, y) function class.

This class functions like an image sampler with normalized coordinates found on a GPU. It is based on a 2D array, allowing interpolation of any value at a given (x, y) coordinate. Specific boundary conditions, such as periodicity, can also be used.

Constructor & Destructor Documentation

◆ ArrayFunction()

hmap::ArrayFunction::ArrayFunction	(	hmap::Array	array,
		glm::vec2	kw,
		bool	periodic = `true`
	)

Construct a new ArrayFunction object.

Parameters

array	Data array.
kw	Noise wavenumbers {kx, ky} for each direction, with respect to a unit domain.
periodic	Whether the domain is periodic or not.

Member Function Documentation

◆ set_array()

void hmap::ArrayFunction::set_array ( Array new_array )

inline

Set the array object.

Parameters

new_array New data array.

Member Data Documentation

◆ kw

glm::vec2 hmap::ArrayFunction::kw

protected

Frequency scaling vector.

◆ periodic

bool hmap::ArrayFunction::periodic

protected

Flag indicating whether the domain is periodic or not.

The documentation for this class was generated from the following files:

HighMap/include/highmap/functions.hpp
HighMap/src/primitives/functions/functions.cpp
