gnode::Port Class Reference

Abstract base class representing a port in a node. More...

#include <port.hpp>

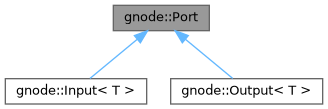

Inheritance diagram for gnode::Port:

Public Member Functions
	Port ()=default
	Default constructor for Port.
	Port (std::string label)
	Constructs a Port with the specified label.
virtual	~Port ()=default
	Virtual destructor for Port.
std::string	get_data_type () const
	Retrieves the type name of the data handled by this port.
std::string	get_label () const
	Retrieves the label of the port.
virtual std::shared_ptr< BaseData >	get_data_shared_ptr_downcasted () const
	Retrieves a shared pointer to the data associated with the port after downcasting.
virtual PortType	get_port_type () const =0
	Pure virtual function to get the type of the port (IN or OUT).
virtual void *	get_value_ref_void () const =0
	Retrieves a void* reference to the data value stored in this output port.
virtual void	set_data (std::shared_ptr< BaseData >)
	Sets the data associated with the port.

Protected Attributes
std::string	data_type
	A string representing the type name.

Private Attributes
std::string	label = "no label"
	The label of the port.

Detailed Description

Abstract base class representing a port in a node.

The Port class provides a common interface for input and output ports. Each port has a label and can hold data.

Constructor & Destructor Documentation

Port() [1/2]

gnode::Port::Port ( )

default

Default constructor for Port.

Port() [2/2]

gnode::Port::Port ( std::string  label )

inline

Constructs a Port with the specified label.

Parameters

label

A string representing the label of the port.

~Port()

virtual gnode::Port::~Port ( )

virtualdefault

Virtual destructor for Port.

Member Function Documentation

get_data_shared_ptr_downcasted()

virtual std::shared_ptr< BaseData > gnode::Port::get_data_shared_ptr_downcasted ( ) const

inlinevirtual

Retrieves a shared pointer to the data associated with the port after downcasting.

Returns

A shared pointer to the BaseData, or nullptr if not applicable.

Reimplemented in gnode::Output< T >.

get_data_type()

std::string gnode::Port::get_data_type ( ) const

inline

Retrieves the type name of the data handled by this port.

Returns

A string representing the type name.

get_label()

std::string gnode::Port::get_label ( ) const

inline

Retrieves the label of the port.

Returns

A string representing the port's label.

get_port_type()

virtual PortType gnode::Port::get_port_type ( ) const

pure virtual

Pure virtual function to get the type of the port (IN or OUT).

This function must be implemented by derived classes to indicate whether the port is an input (PortType::IN) or an output (PortType::OUT).

Returns

The port type (PortType::IN or PortType::OUT).

Implemented in gnode::Input< T >, and gnode::Output< T >.

get_value_ref_void()

virtual void * gnode::Port::get_value_ref_void ( ) const

pure virtual

Retrieves a void* reference to the data value stored in this output port.

Returns

A void* pointer to the data value.

Implemented in gnode::Input< T >, and gnode::Output< T >.

set_data()

virtual void gnode::Port::set_data ( std::shared_ptr< BaseData >  )

inlinevirtual

Sets the data associated with the port.

Parameters

data	A shared pointer to the BaseData to set.

Reimplemented in gnode::Input< T >.

Member Data Documentation

data_type

std::string gnode::Port::data_type

protected

A string representing the type name.

label

std::string gnode::Port::label = "no label"

private

The label of the port.

---

The documentation for this class was generated from the following file:

• GNode/include/gnode/port.hpp
