HighMap library documentation!

Welcome to the documentation of the HighMap, a C++ library designed to facilitate the generation of heightmaps for video games, simulations, and other applications that require detailed terrain data.

Heightmaps?

A heightmap is a type of digital image or data grid that represents the elevation or height of terrain in a two-dimensional format. Each pixel or point in a heightmap corresponds to a specific location on the terrain, with the value at that point indicating the elevation above anny reference level.

In a grayscale heightmap, darker shades typically represent lower elevations, while lighter shades indicate higher elevations. This visual representation allows developers to easily map out and manipulate terrain features such as hills, valleys, mountains, and plains in a virtual environment.

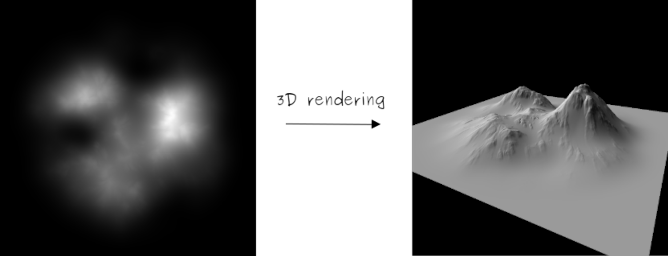

Heightmap (left) and 3D rendering of this heightmap (right).

Getting started

Sources and installation

For installation instructions, please refer to the README in the GitHub repository: https://github.com/otto-link/HighMap.

Basic principle and data structure

The library represents heightmaps using a 2D array of floating-point values, where each value corresponds to the elevation at a specific point on the terrain. To work with these heightmaps, the library includes specialized data structures that allow for efficient generation, manipulation, and modification of these arrays, making it easier to create and adjust complex terrain features.

Provided data structures are:

• 2D array,
  • hmap::Array for 2D array of floats,
  • hmap.HeightMap for a tiled representation and parallel computation of 2D array of floats,
• bivariate \((x, y)\) functions for locally computable noise generators or basic functions,
  • hmap::Function and its derivates hmap::NoiseFunction, hmap::FbmFunction, hmap::FieldFunction,...
• geometric primitives,
  • hmap::Point,
  • hmap::Edge,
  • hmap::Cloud for set of points ,
  • hmap::Path for set of ordered points (i.e. open or closed polylines),
  • hmap::Graph.

"Array" - Elementary Data Structure for Building Heightmaps

The Array object is the fundamental class upon which the heightmap construction algorithms rely. A heightmap is a two-dimensional representation where each cell's value corresponds to a height or elevation at that point. An Array is simply a 2D array with dimensions defined by shape (length/width).

Indexing is typically based on a pair of indices (i, j). The cell at (i=0, j=0) is assumed to be at the bottom-left corner of the heightmap. This assumption is usually inconsequential, except when the heightmap needs to be aligned with specific spatial positions (x, y). The conversion between indices (i, j) and spatial positions (x, y) depends on the heightmap's "bounding box," which is the spatial domain covered by the heightmap. By default, this bounding box is assumed to be a unit domain, meaning it spans a square of size 1 in both x and y directions.

The values within the heightmap cells are generally within the range [0, 1]. While this range is not strictly enforced, some algorithms assume that the data adheres to this scale. It is always possible to use the hmap::remap function to adjust the scale of the heightmap values to fit within the desired range.

Example usage

Generate classical coherent noises (Perlin, Simplex, fractal layering, etc...)

Filters

Physical processes

Bivariate functions

Exporting

Image formats (png, tiff, exr...)

Numpy binary file

The library includes a function that enables exporting data to the NumPy binary format (.npy), facilitating integration with Python's NumPy library.

#include <iostream>

#include "highmap.hpp"

int main(void)
{
  hmap::Vec2<int>   shape = {512, 256};
  hmap::Vec2<float> kw = {4.f, 2.f};
  int               seed = 1;

  hmap::Array z = hmap::noise_fbm(hmap::NoiseType::PERLIN, shape, kw, seed);

  std::cout << z(10, 12) << std::endl;

  z.to_numpy("out.npy");
  z.to_png("ex_to_numpy.png", hmap::Cmap::JET);

  // --- python script to check this provided below in the comments

  // import matplotlib.pyplot as plt
  // import numpy as np
  // z = np.load('out.npy')
  // print(z.shape)
  // print(z[10, 12])
  // plt.imshow(z, cmap='jet')
  // plt.show()
}

Raw binary file

Asset export (3D mesh and texture)

hmap::AssetExportFormat

hmap::MeshType

Library functionalities

Header	Description
array.hpp	Declaration of the Array class for 2D floating-point arrays with various mathematical operations and utilities.
